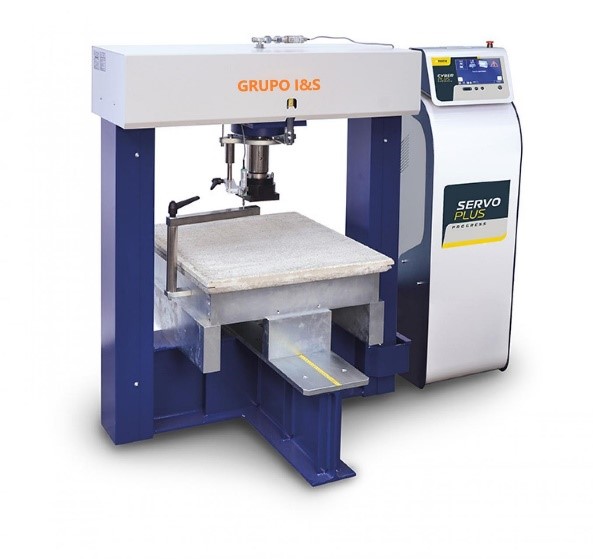

Bending frame 200 KN high stability

Category

High bending stiffness frame of 200 kN capacity, complete with pressure transducer, used in combination with a digital compression machine (Digitec, Autotec, Cyber-Plus / Servo-Plus Progress).

This group of two frames offers the considerable advantage of performing compression tests on specimens of concrete cubes, cylinders and blocks; flexural tests on concrete beams, and using suitable accessories, also perform the following tests:

  • Compression on 40.1x40x160 mm mortar portions broken in flexure according to specifications EN 196, DIN 1164 (Devices mod. D170, D170-01)
  • Compression on 50 mm mortar cubes, according to ASTM C109 (device mod. D171)
  • Compression on 70 mm mortar cubes, according to BS 4550 (device mod. D171-01)

Tensile splitting in cylindrical samples of diameter. 100, 150, 160 mm according to EN 12390-6 – NF P18:408 – ASTM C496 – UNI 6135 – BS 1881:117 (device mod. C101-01)

Shear traction on concrete cubes and concrete block pavers, according to EN 12390-6, EN 1338 (device mod. C103).
